Azure AKS – BYO CNI with Cilium

Running Cilium as a BYO (bring‑your‑own CNI on AKS (Azure Kubernetes Service) is now a first‑class, supported pattern for advanced users who want full control over the dataplane. In this post I’ll go step by step through creating an AKS cluster with no built‑in CNI and then installing Cilium on top.

Azure AKS CNI options

AKS ships with several built‑in networking options ( https://learn.microsoft.com/en-us/azure/aks/concepts-network-cni-overview ):

kubenet (legacy),
Azure CNI Overlay,
Azure CNI Pod Subnet,
and Azure CNI Node Subnet (legacy).

For most workloads, these are enough, but they limit how deeply you can tune or extend the networking dataplane. What’s more, there are yet two other options:

Bring your own (BYO) CLI,
Azure CNI Powered by Cilium.

Why BYO CNI and Cilium?

BYO CNI lets you create an AKS cluster with –network-plugin none, so no CNI is preinstalled and you can bring your own plugin such as Cilium. Microsoft explicitly calls this out as the recommended option for customers who need more control and want to use Cilium‑specific features beyond what managed Azure CNI powered by Cilium exposes. And that’s the way we gonna deploy our AKS Cluster in a minute.

AKS Cluster Deployment

Pre-steps

First make sure you’re logged in and targeting the right subscription:


					az login

az account set --subscription "<your-subscription-id>"

az account show

Create a resource group for the lab. This RG will contain both the AKS control plane object and the underlying node resource group that AKS creates automatically.


					az group create \
  --name rg-aks-cilium-demo \
  --location germanywestcentral

Create an AKS Cluster with no CNI

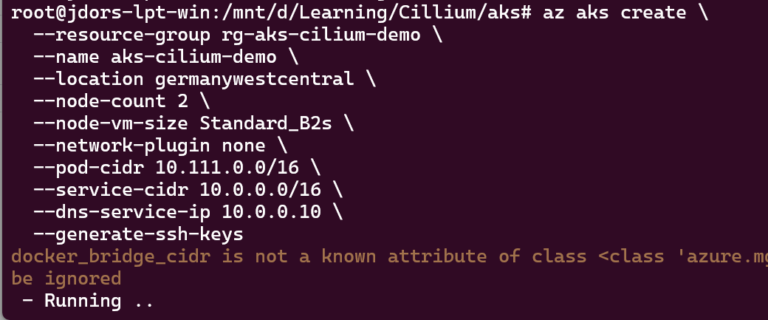

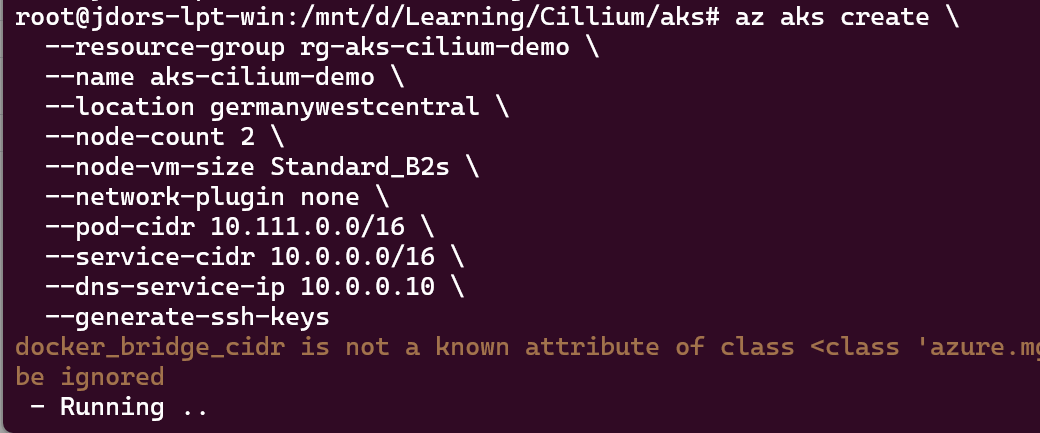

Now we create the AKS cluster in BYO CNI mode by setting --network-plugin none:

And a couple of additional comments:


					az aks create \
  --resource-group rg-aks-cilium-demo \
  --name aks-cilium-demo \
  --location germanywestcentral \
  --node-count 2 \
  --node-vm-size Standard_B2s \
  --network-plugin none \
  --pod-cidr 10.111.0.0/16 \
  --service-cidr 10.0.0.0/16 \
  --dns-service-ip 10.0.0.10 \
  --generate-ssh-keys

two nodes are sufficient for the sandbox environment,
node-vm-size is enough for a sandbox environment,
the service cidr must be smaller than /12 ( https://learn.microsoft.com/en-us/azure/aks/concepts-network-ip-address-planning ),
the pod cidr is required (even if we plan to use Cilium)
service-cidr and dns-service-ip are required. The dns-service-ip must be assigned from the service-cidr IP range. It’s recommened not to use the “first” IP,
the crucial one: network-plugin is set to none. It means that Azure will not install the CNI.

You can monitor provisioning with:


					az aks show \
  --resource-group rg-aks-cilium-demo \
  --name aks-cilium-demo \
  --query "provisioningState" \
  --output table

or:

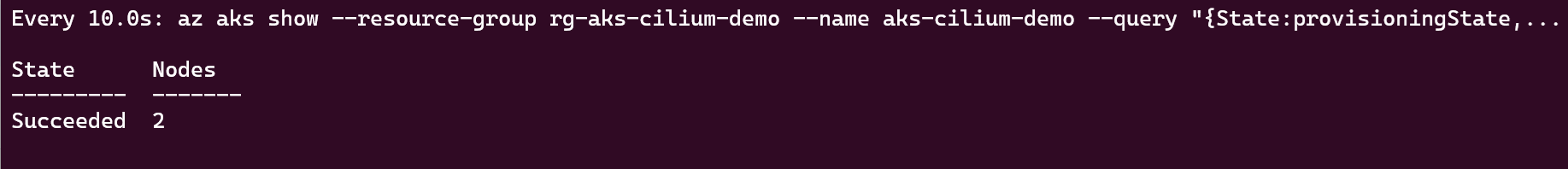

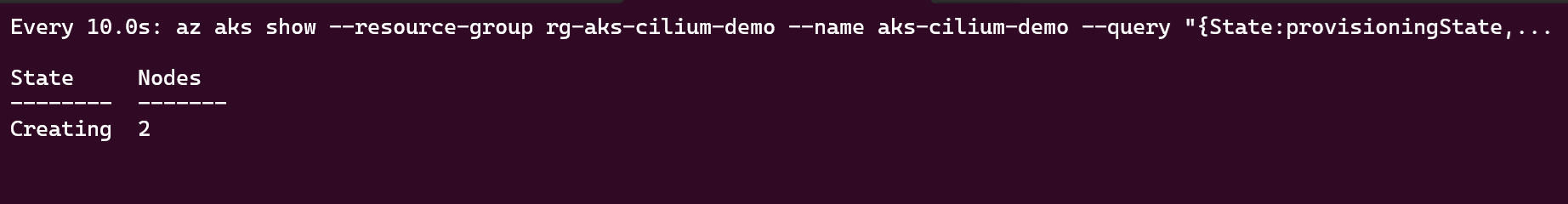

					watch -n 10 'az aks show --resource-group rg-aks-cilium-demo --name aks-cilium-demo --query "{State:provisioningState, Nodes:agentPoolProfiles[0].count}" -o table'

This makes it easy to see when the cluster is fully created and how many nodes are in the agent pool.

Connect to the Cluster

At this stage, the cluster will exist but the nodes will typically be reported as NotReady because no CNI plugin has initialized the pod network yet.

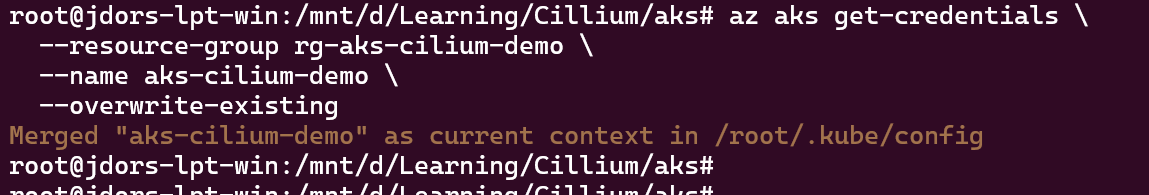

First, let’s connect to the Cluster:


					az aks get-credentials \
  --resource-group rg-aks-cilium-demo \
  --name aks-cilium-demo \
  --overwrite-existing

Note: az aks get-credentials merges the cluster config into your default ~/.kube/config file. Use --overwrite-existing if you’re switching between multiple clusters to avoid context conflicts.

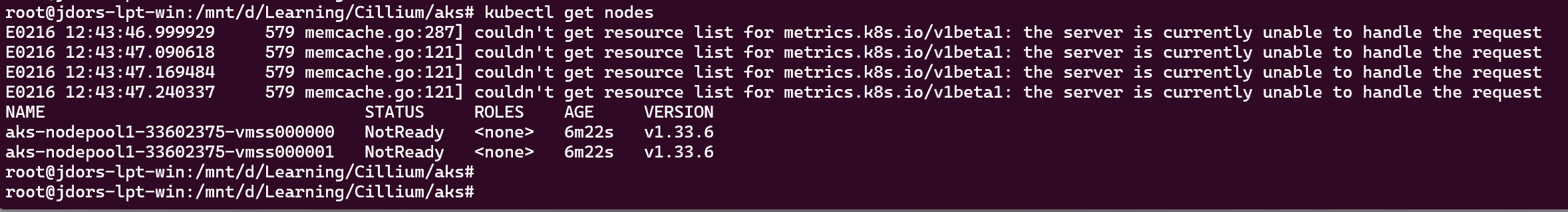

You can check the state of the Nodes with:


					kubectl get nodes

You can confirm the reason why nodes aren’t ready with:


					kubectl describe node <node-name>

Cilium Deployment

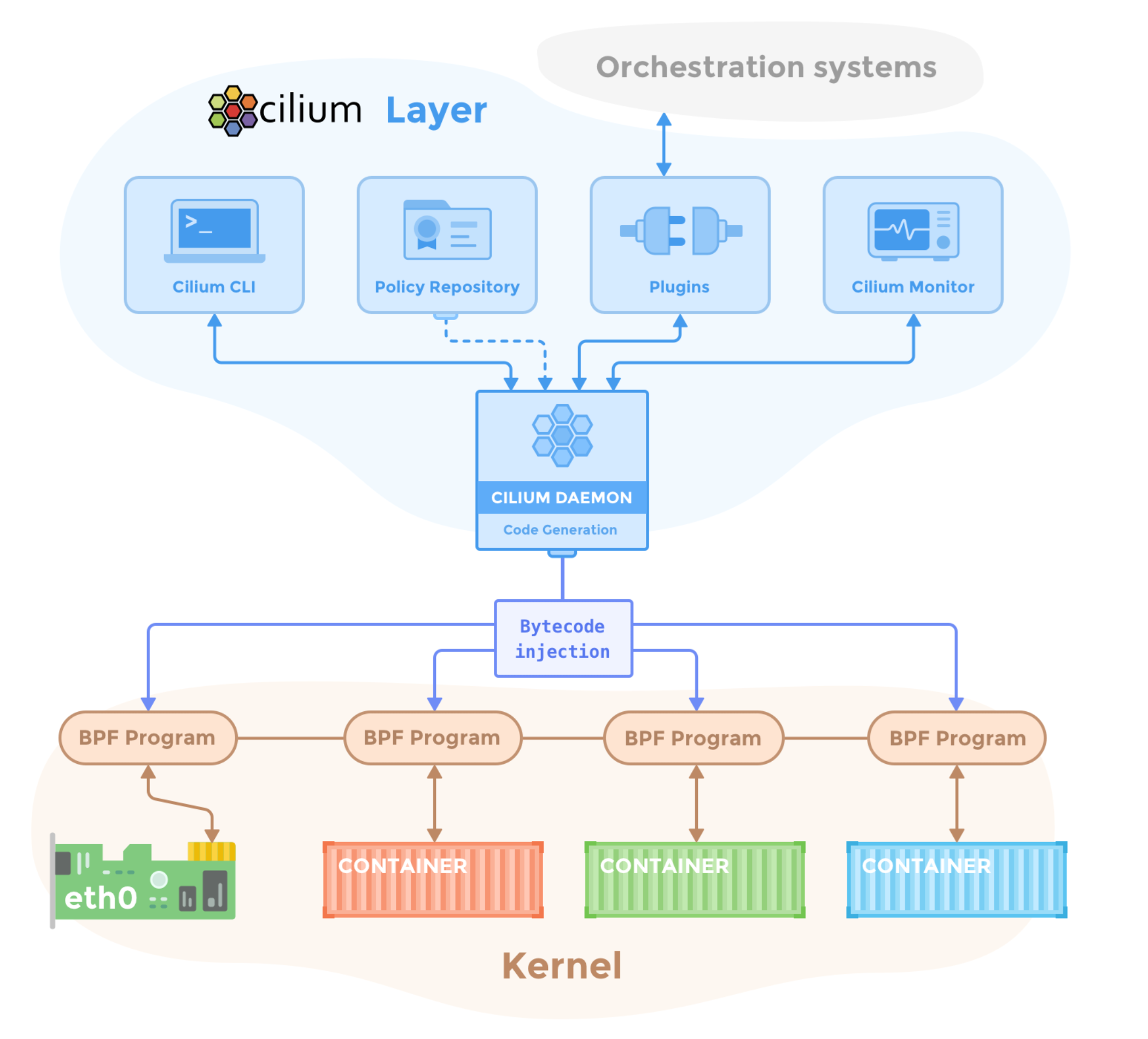

Cilium runs an agent (cilium-agent) on every node as a DaemonSet and programs eBPF hooks in the Linux kernel dataplane to handle pod networking, load‑balancing and policy enforcement. It also deploys the Cilium operator and, optionally, Hubble components for observability, which together manage IP allocation, node life cycle and flow visibility.
Diagram can be found here: https://docs.cilium.io/en/stable/_images/cilium-arch.png

Cilium CLI

On Linux you can install the Cilium CLI directly from the official GitHub releases:


					curl -LO https://github.com/cilium/cilium-cli/releases/latest/download/cilium-linux-amd64.tar.gz

sudo tar xzvfC cilium-linux-amd64.tar.gz /usr/local/bin

rm cilium-linux-amd64.tar.gz

cilium version --client

Install Cilium

It’s high time to install Cilium now. Please note that Cilium detects kube-proxy.

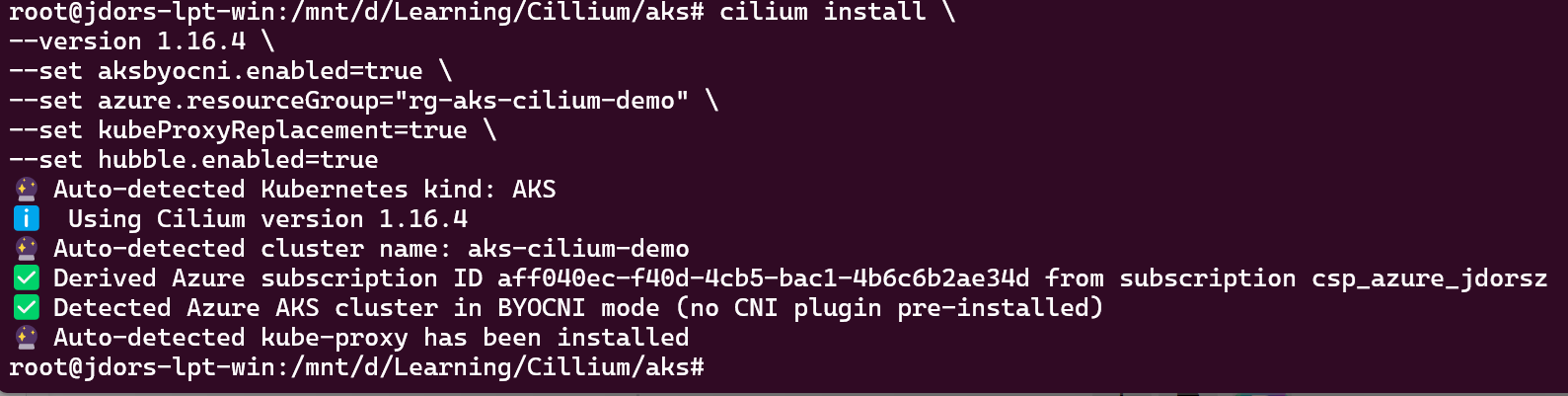

					cilium install \
--version 1.16.4 \
--set aksbyocni.enabled=true \
--set azure.resourceGroup="rg-aks-cilium-demo" \
--set kubeProxyReplacement=true \
--set hubble.enabled=true

Note:

kubeProxyReplacement=true enables eBPF‑based replacement of kube‑proxy, so Cilium takes over Service handling and load‑balancing.
hubble.enabled=true turns on Hubble for observability, so you can inspect L3/L4/L7 flows once traffic starts flowing.

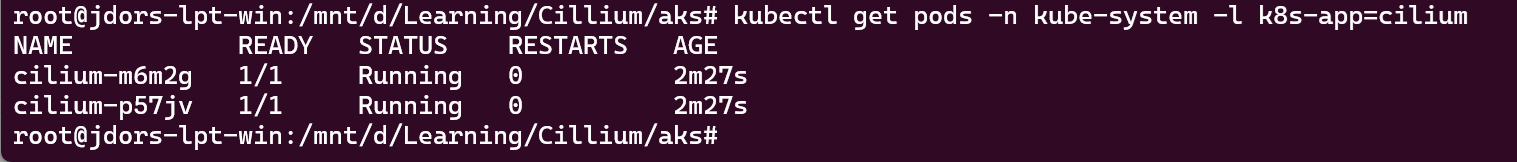

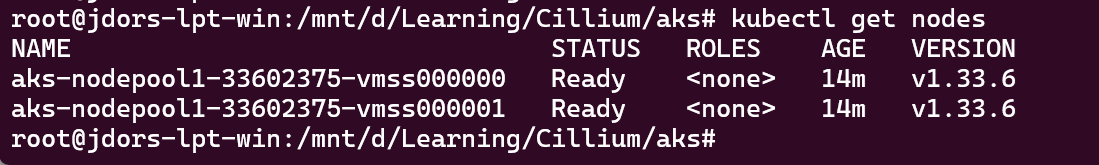

Verify the nodes are Ready and Cilium is there:


					kubectl get nodes


					kubectl get pods -n kube-system -l k8s-app=cilium

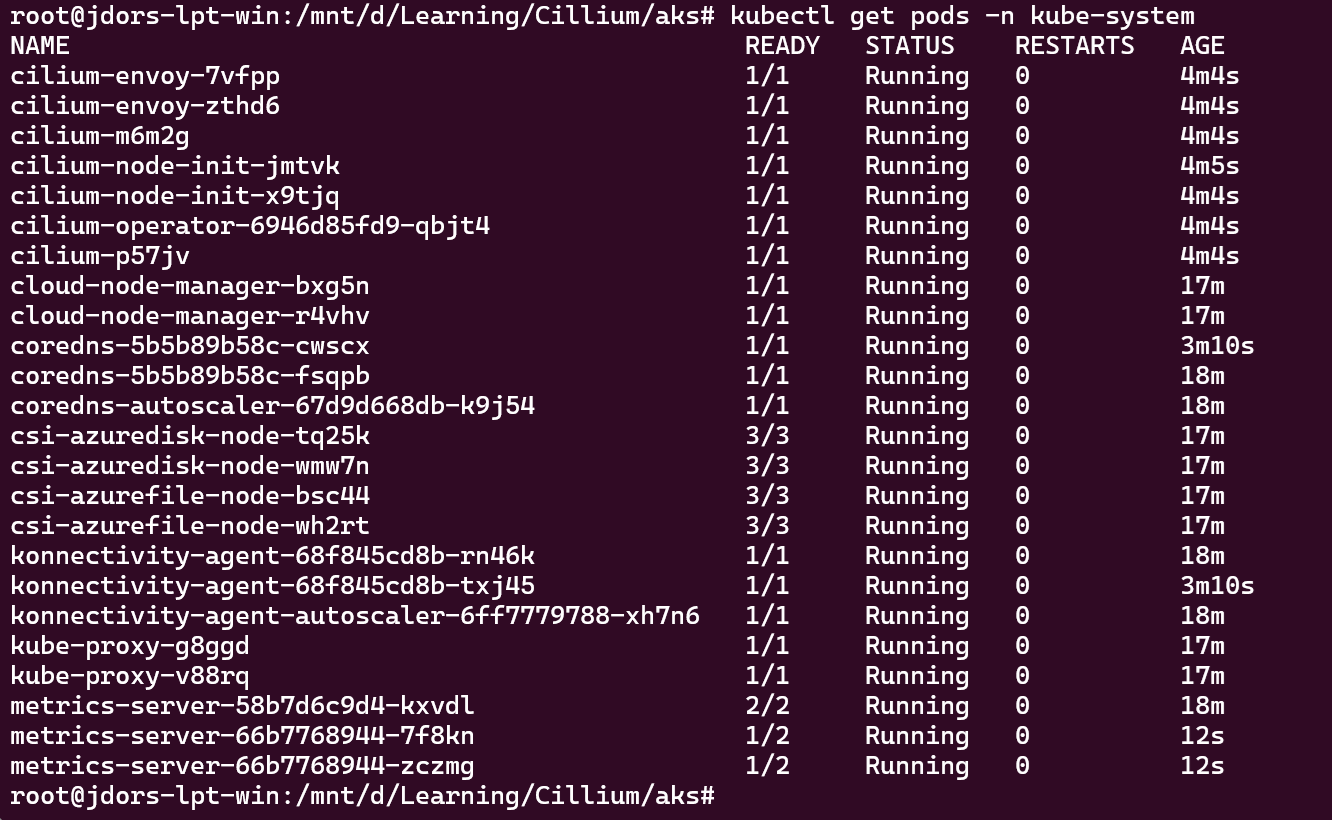

					kubectl get pods -n kube-system

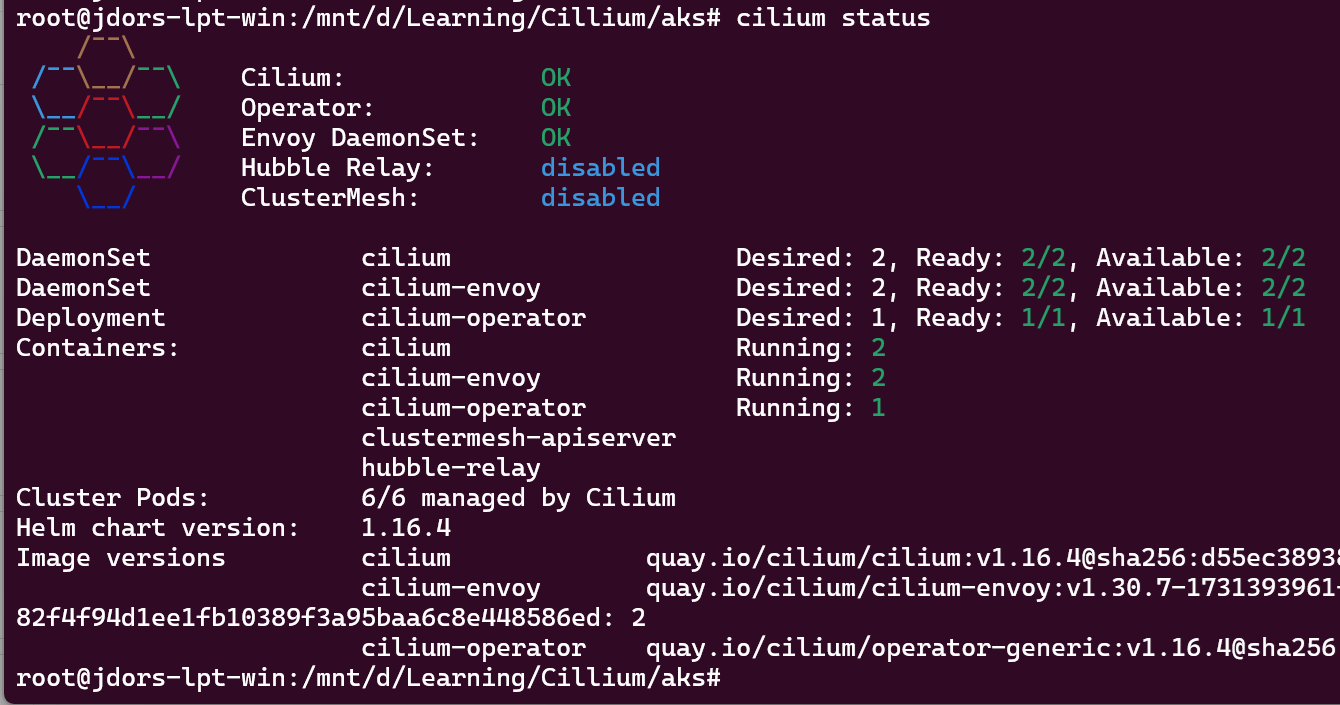

Check Cilium status:


					cilium status

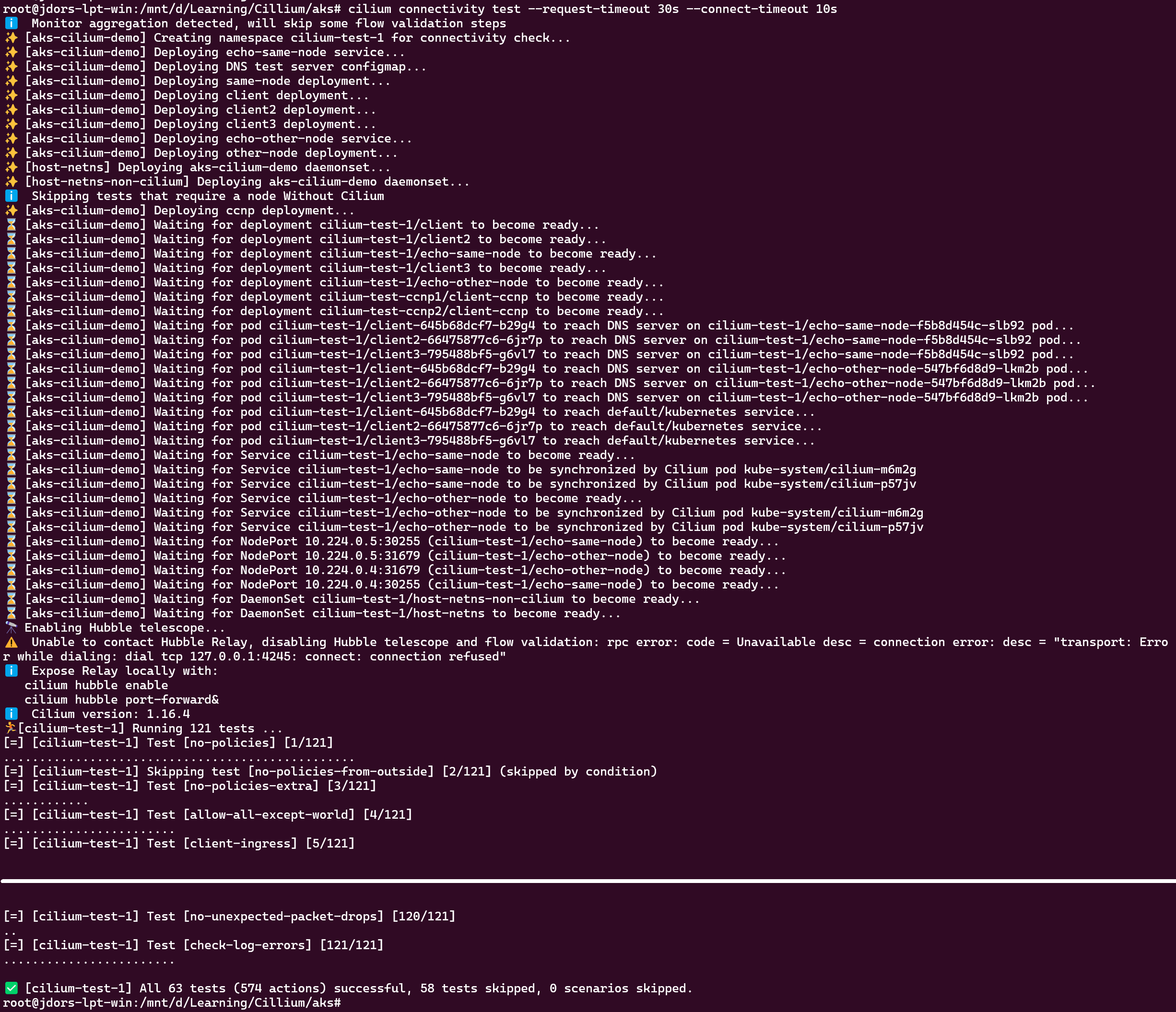

Optionally, you can validate the Cilium operation using the Cilium CLI Tool. There are plenty of tests been executed by the tool so please be veeeery patient.


					cilium connectivity test --request-timeout 30s --connect-timeout 10s

Cilium Test

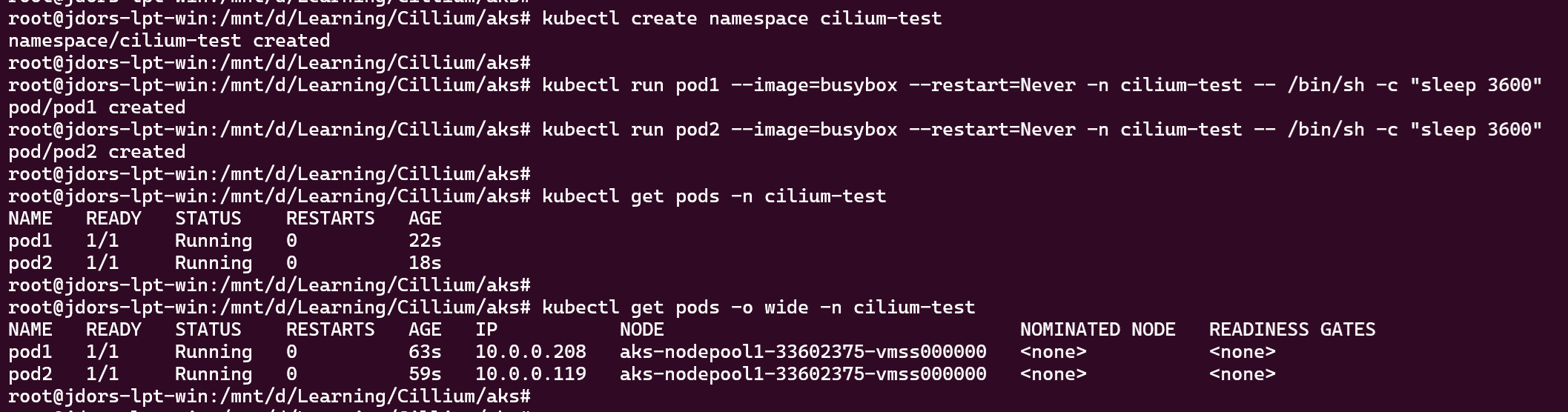

Let’s test that the Cilium CNI is working. I’ll deploy two Pods and check the pod-to-pod connectivity (no network-policies involved here).


					kubectl create namespace cilium-test

kubectl run pod1 --image=busybox --restart=Never -n cilium-test -- /bin/sh -c "sleep 3600"

kubectl run pod2 --image=busybox --restart=Never -n cilium-test -- /bin/sh -c "sleep 3600"

Verify the Pods IP addresses (IPs are assigned so that confirms Cilium CNI did its job):


					kubectl get pods -o wide -n cilium-test

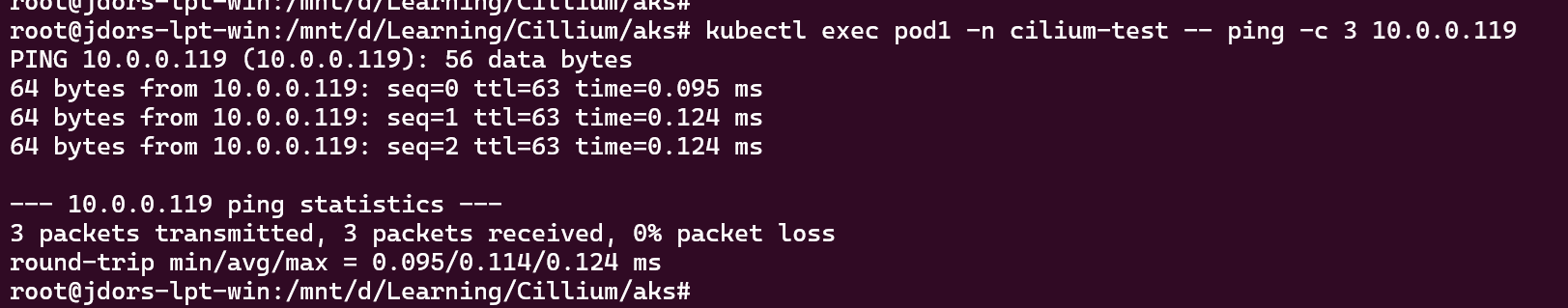

Run ping to test the connectivity between the Pods:


					kubectl exec pod1 -n cilium-test -- ping -c 3 <pod2-ip>

Why would I choose AKS BYO CNI with Cilium?

For many workloads, Azure CNI powered by Cilium is the simplest way to get eBPF benefits with a fully managed dataplane, including performance tuning by the Azure team. However, if you want to:

Control the exact Cilium version and chart values
Enable features as soon as they land upstream (e.g. specific Gateway API, policy or observability options)
Align Cilium config between on‑prem clusters and AKS

then BYO CNI with Cilium gives you the flexibility you’re used to from on‑prem networking, while still offloading the control plane and node lifecycle to AKS.

Cleanup

You can destroy the AKS Cluster with:


					az aks delete \
  --resource-group rg-aks-cilium-demo \
  --name aks-cilium-demo \
  --yes \
  --no-wait

To destroy the resource group use:


					az group delete \
  --name rg-aks-cilium-demo \
  --yes \
  --no-wait
